江陰隆吉誠機械制造有限公司

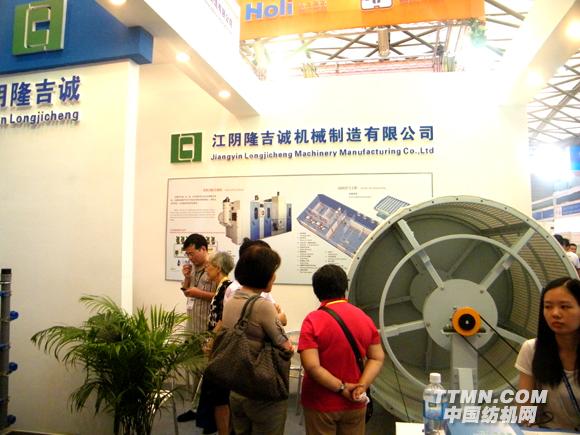

2010年中國國際紡織機械展覽會暨ITMA亞洲展覽會于6月26日落下帷幕，持續5天的展會不僅為行業帶來諸多商業契機，也帶來了更多的挑戰。借行業發展之東風，江陰隆吉誠機械制造有限公司也以一個全新的姿態亮相在此次展會上。
展商簡介：
江陰隆吉誠機械制造有限公司自創建以來，本著“以管理出效益、以質量求生存、以服務求發展”的精神，在紡織濾除、空調等領域中，不斷進取，求實提高，為廣大用戶提供優質產品及周到服務，贏得了市場的廣泛接受和好評。
公司擁有科學化管理體制，先進的管理技術，高素質的員工；匯集了一批業務能力出眾的專業系統設計和研制開發人員，CAD軟件繪圖、設計系統；不斷創新、精益求精，使我們的產品技術先進、性能優良、跟隨時代同發展。
公司生產的LFUO17型多筒式濾塵機組具有結構簡單、新穎、機組能耗低、除塵效果好、故障率低等特點。在空調設計上，正朝著高效率、節能型、機組化及機電一體化方向發展。
我們的宗旨是“用一份執著、用一份實在、用一份認真、創一流的服務、質量。用腳踏實地的從業精神和做事態度，致力于紡織濾塵、空調行業的開拓進取！”
江陰隆吉誠機械制造有限公司在江陰--蘇南名城，熱忱歡迎您的到來--五湖四海的朋友們！

Based on the sprit of“benefit through management．exi stence lhrough quality and development through service”，Jiangyin Longjicheng Machinery Manufacturing Co．，Ltd has been making progress and improvement continuously in the field of textile du

st cleaning and air conditioning since its establishment，and has offered high quality products and perfect srevice for the USers，winning wide
acceptance and reputation from the market．
With scientific management system，advanced management technology and high quality staff members，our company has a team of outstanding and professional personnel engaged in system design．research and development，with CAD software drawing and design system，we make continuous innovation and improvement and ensure advanced technology and excellent performance of our products．
LFUO 1 7 model multi—drum dust filtering set produced by our company has such advantages as simple and novel structure，low energy consumption，good dust filtering effect and low failure rate etc．In terms of air—conditoning desi

gn，we are developing toward high efficiency，energy-saving，and mechanical—electrical integration．
It’s our purpose to create classic service and quality with persistence，diligence and reality and develop textile dust filtering and air conditioning with substantial undrtaking attitude．
Friends from all over the world are welcome to visit our company that is situated in Jiangyin，the famou S city in the south of Fiangsu Provjnce

展商展品：

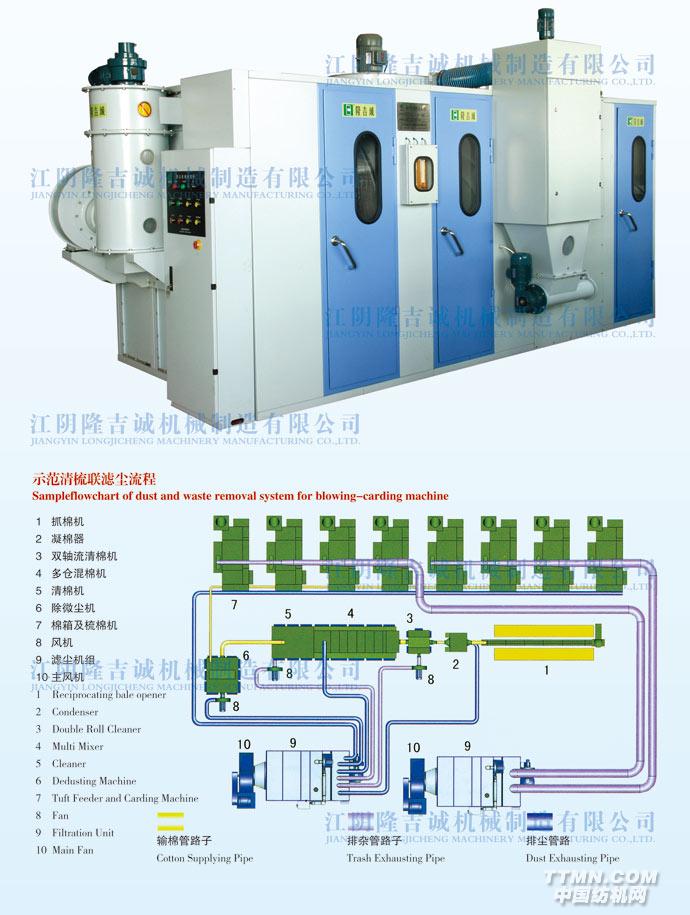

LFU017型多筒式除塵機組LFU017 Model Multi-drum Duster
產品用途
主要用干棉、毛、麻、化纖等紡織行業的空調除塵系統，過濾和收集空氣中干性的纖維性雜質和粉塵，使含塵空氣凈化，以達到回用或排放要求。
Application:
Mainly used for air conditioning and dust cleaning system in textile industry including cotto

n.wool,linen/ramie and chemical fiber etc.,it can
filter and collet dry fibrous impurity and dust in the air,which makes dust air purified and reach the requirement of recovery and discharge.

http://www.longjicheng.com/newEbiz1/51alongjichengres/filerepository/images/c373e922653019758f6bbdaf9af2e9ff

工作原理

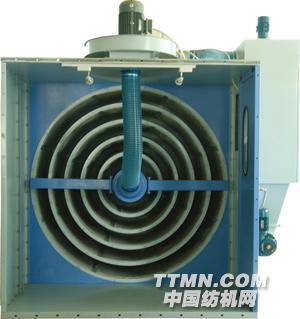

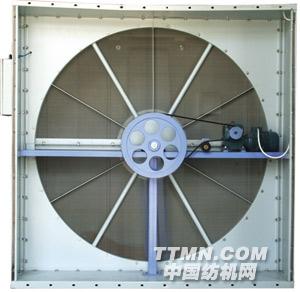

多筒式除塵機組是由第一級圓盤預過濾器和第二級多筒式濾塵器構成的機電一體化的除塵機組。第一級圓盤預過
濾器主要過濾、分離、收集被處理空氣中的纖維和雜質第二級多筒式濾塵器主要過濾、分離、收集第一級過濾后空氣
中的微細纖塵和粉塵。
Working principle：
It is a mech-electrical unit consisted of the first-stage disc prefiher and the second stage multiple round cage dust-filter. The first stage filter
is used to extract, separate,collect the fibrous dust in the processing air; The second stage filter is used to filter out the Fine dust from the air exhausted

from the first stage filter.
結構特點

http://www.longjicheng.com/newEbiz1/51alongjichengres/filerepository/images/c373e920a7a982418ffff5b05856f9b3

除塵機組性能可靠，適應性強，過濾面積大，
機組能耗低，系統阻力小；除塵效果好，速度快，
安全阻燃；傳動機構簡單，故障率低；機組占地面
積小，維護檢修方便快捷。
Structure features:
Dust cleaning set has reliable performance,strong
adaptability,large filtering area,low energy consumption,small
system resistance,good dust cleaning effect,fast speed,good safety　　　
and fire resistance,moreover,it has simple drive mechanism,low
failure rate,small floor space,as well as convenient and quick
maintenance.

http://www.longjicheng.com/newEbiz1/51alongjichengres/filerepository/images/c373e920a7ac86d98ffff5b05856f9b3

http://www.longjicheng.com/newEbiz1/51alongjichengres/filerepository/images/c373e920a7a9825a8ffff5b05856f9b3

性能參數 Performance parameters

FU017-7

型號規格 Mode l and specification	處理風量x104m3/h Treatment blast						濾塵阻力Pa Resistance of dust filtering	除塵效率% Dust cleaing efficiency%
	除塵系統 Dust cleaning system					回風過濾 Air returning filter
	廢棉 Waste cotton	粗號棉 Bonnet cotton	中號棉 Middle cotton	細號棉 Fine cotton	化纖棉 Chemical fiber cotton	回風過濾 Air returning filter
LFU017-5	0.6-1.2	1.0-1.8	1.6-2.2	2.0-2.8	2.6-3.8	3.5-4.0	≤250	≥99
LFU017-6	1.2-2.0	1.8-2.9	2.0-3.2	2.6-3.7	3.8-5.1	4.0-5.4
LFU017-6A	2.0-2.8	2.5-3.7	2.9-4.0	3.3-4.7	4.8-6.4	5.0-6.7
2.8-3.6	3.0-4.7	3.6-5.2	4.0-6.0	6.0-8.2	5.9-8.6
LFU017-7A	2.8-3.6	3.6-5.0	4.0-5.8	4.8-6.9	8.0-9.0	8.0-9.5

注：表中參數為用于棉紡各生產工序、各紡紗品種除塵系統時的處理風量。用于其他情況僅供參考。
Note：Parameters in table are used for treatment blast in dust cleaning system of each production procedure and variety of cotton spinning. For
others,it is only for reference.

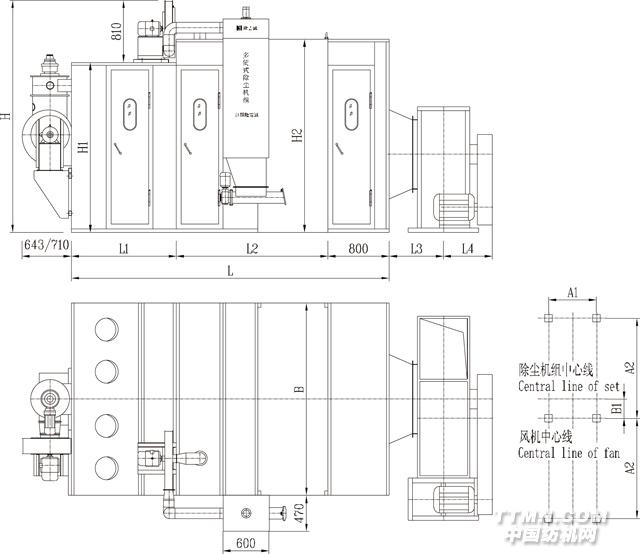

規格尺寸 Specification

型號規格 Model and specification			LFUO17-5	LFUO17-6	LFUO17-6A	LFUO17-7	LFUO17-7A
第一級 Grade \|	圓盤濾網 Filter screen of dise	盤徑 Diameter of disc	Ф1700	Ф2000	Ф2000	Ф2500	Ф2500
		過濾面積 Filte ring area	2.07	2.94	2.94	4.71	4.71
		濾網(目/英寸) Filter screen(mesh/inch)	60-80-100-120（不銹鋼絲網） 60-80-100-120（Stainless steel screen）
	箱體外形尺寸 Overall dimension of box	長度L1（mm） Length	1368
		寬度B（mm） Width	1900	2204	2508	2812	2812
		高度H1（mm） < Heigth	1912	2216	2216	2824	2824
	裝機容量（km） Total inaalled capacity		3.92			4.92
第二級 Grade \|\|	濾筒 Filter drum	最大直徑Ф（mm） Max .diameter	1712	2016	2320	2624	2624
		過濾面積（m） Filter area	16	21.5	27	34	39.1
		濾料 Filter materials	JM2或JM5（阻燃長毛絨） JM2 or JM5(Fire resistance plush)
	箱體外形尺寸 Overall dimension of box	長度L2（mm） Length	1976				2096
		寬度B（mm） Width	1900	2204	2508	2812	2812
		高度H2（mm） Heigth	1912	2216	2520	2824	2824
	裝機容量（km） Total inaalled capacity		4.21			5.21
機組 Set	最大外形尺寸 Max.overall dimension	長度L（mm） Length	4144				4264
		寬度B（mm） Width	2292	2596	2900	3204	3204
		高度H（mm） Heigth	2722	3026	3026	3634	3634
	總裝機容量（km） Total inaalled capacity		8.13			10.13

風機地腳尺寸 Foundation size of fan

風機規格 Specification of fan	A1	A2	L3	L4	B1
SFF232-12 NO.7.1E	510	1060	650	560	230
SFF232-12 NO.8E	570	1170	680	600	232
SFF232-12 NO.9E	625	1305	706	640	251
SFF232-12 NO.10E	690	1415	735	700	247
SFF232-12 NO.11.2E	765	1540	775	730	238
SFF232-12 NO.12.5E	850	1800	814	760	346
