RECOLINE廢舊紡織品回用生產線
發布時間：2017-01-04

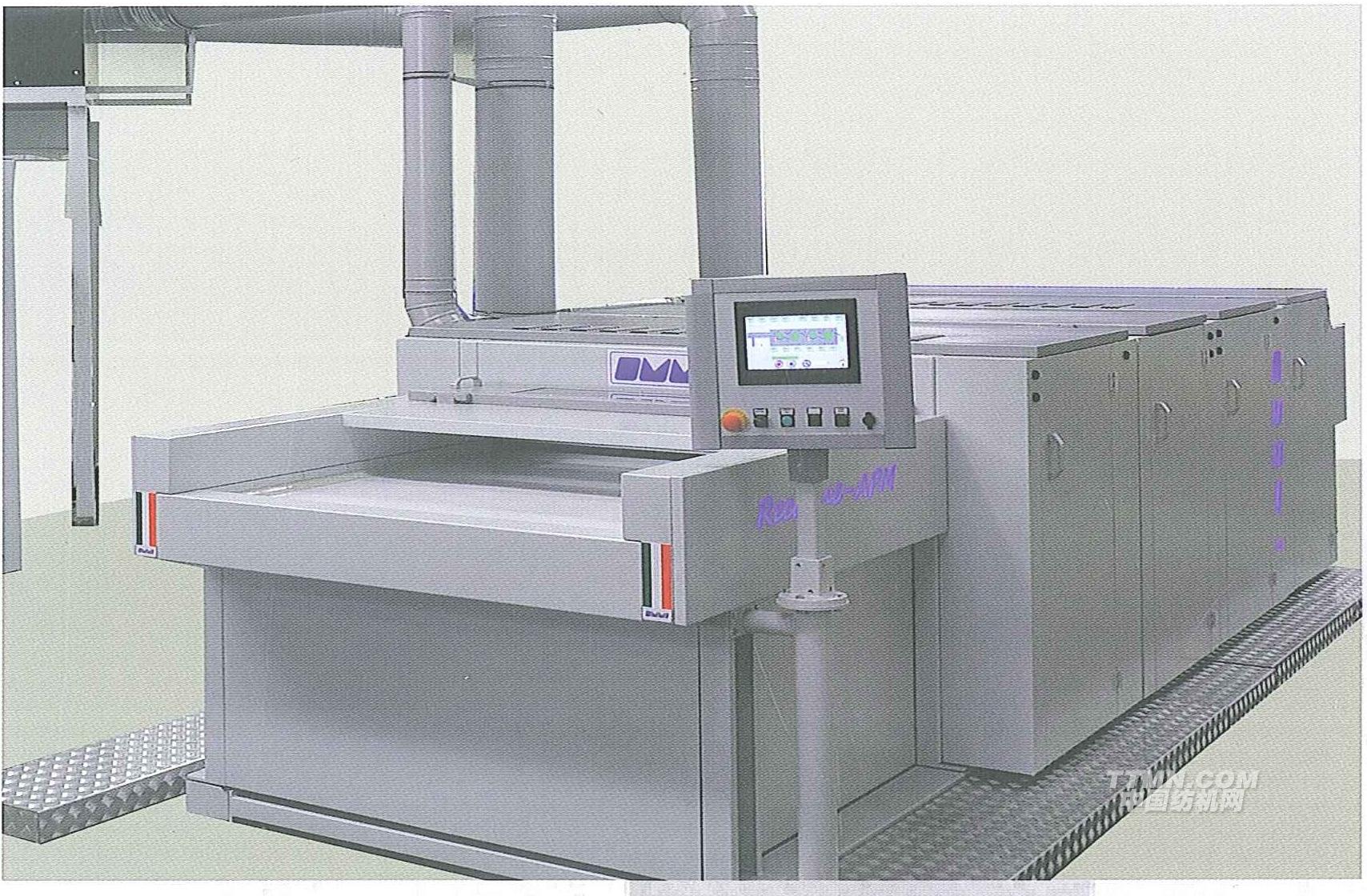

RECOLINE Textile waste reclaiming machines and plants with OpenMax – APM
RECOLINE 配置OpenMax – APM多功能多用途神奇開松機的廢舊紡織品
回用生產線
HARD TEARING POWER● SOFT ON FIBER● LOW ON ENERGY CONSUPTION
強力撕裂●柔和開松●耗能低
RECYCLING 廢舊紡織品回用生產線
Rotary Cutters 切割機
Pre-Openers 預開松機
Automatic Blenders and Feeders 自動混合和喂入設備
Impurities and Dust Separators 雜質和灰塵分離裝置
Tearing lines composed from 2 to 6 opening sections 撕裂/開松加工: 2-6個開松單元
RECOLINE is composed by one or more in-line groups of OpenMax-APM, a very robust a versatile machine with the Ommi’s new system that is providing unique of his kind result in this field, indeed with the least energy consumption and the most in quality of opening and integrity of fibbers.
RECOLINE廢舊紡織品回用生產線中有一個或多個OpenMax – APM多功能多用途神奇開松單元。OpenMax配置奧米公司新的專利系統，是這個領域的獨創， 最大限度節能，徹底開松纖維并最大限度保護纖維。
A condenser unit assures the passage of material from one group to the next. The new exclusive design of the condenser unit and its motorized lateral movement together with the automatic lifting of the lids and the consequent release of the side protections allows a quick reach for cleaning and maintenance of one condenser and two opening groups. The first group is always equipped with the unopened bits recovery unit (fed back into the system) with flap opening adjustment by a linear actuator while the machine is running.
纖維凝聚器確保纖維從一個開松單元輸送到下一個開松單元。纖維凝聚器設計獨特、電動橫向運動、蓋子自動提升后兩側防護裝置打開，以上使得纖維凝聚器和兩組松單元易于清潔和維修。第一個開松單元配置有未開松碎片回收裝置（回喂到系統中），設備運轉時驅動器調整折翼開合將未開松碎片回喂到系統中。
RECOLINE is a multi material reclaiming line and system that works with technological concept. It is designed for regenerating any type of textile waste coming from spinning, weaving, knitting, nonwoven, garments … with a very powerful tearing action and at the same time with gentle effect on the fibers to make possible a re-use in the original process.
RECOLINE是適合多種廢舊紡織品的高技術含量回用生產線和系統，適用于各種廢舊紡織品的回用，包括回絲、廢舊機織物、廢舊針織物、廢舊非織造布，廢舊服裝等等…
RECOLINE will soon becomes synonymous of optimal quality of the processed material, versatility and easiness of operation, high output, minimum maintenance, maximum saving of energy consumption.
RECOLINE意味著質量高、用途多、操作容易、產量高、維修量少、節能。
OpenMax is a robust and versatile machine to be used successfully either for a delicate but deep opening of fibers in the best conditions for the subsequent process or for the recycling of various types of waste materials coming from textile activities such as spinning, weaving, knitting, nonwoven etc…
多功能多用途神奇開松機OpenMax功能強大、適用范圍廣，以最好的方式柔和且充分開松纖維，可用于纖維的混合，也可用于紡織行業各領域廢舊紡織品的回用，如回絲、 廢舊機織物、廢舊針織物、廢舊非織造布，等等… 。

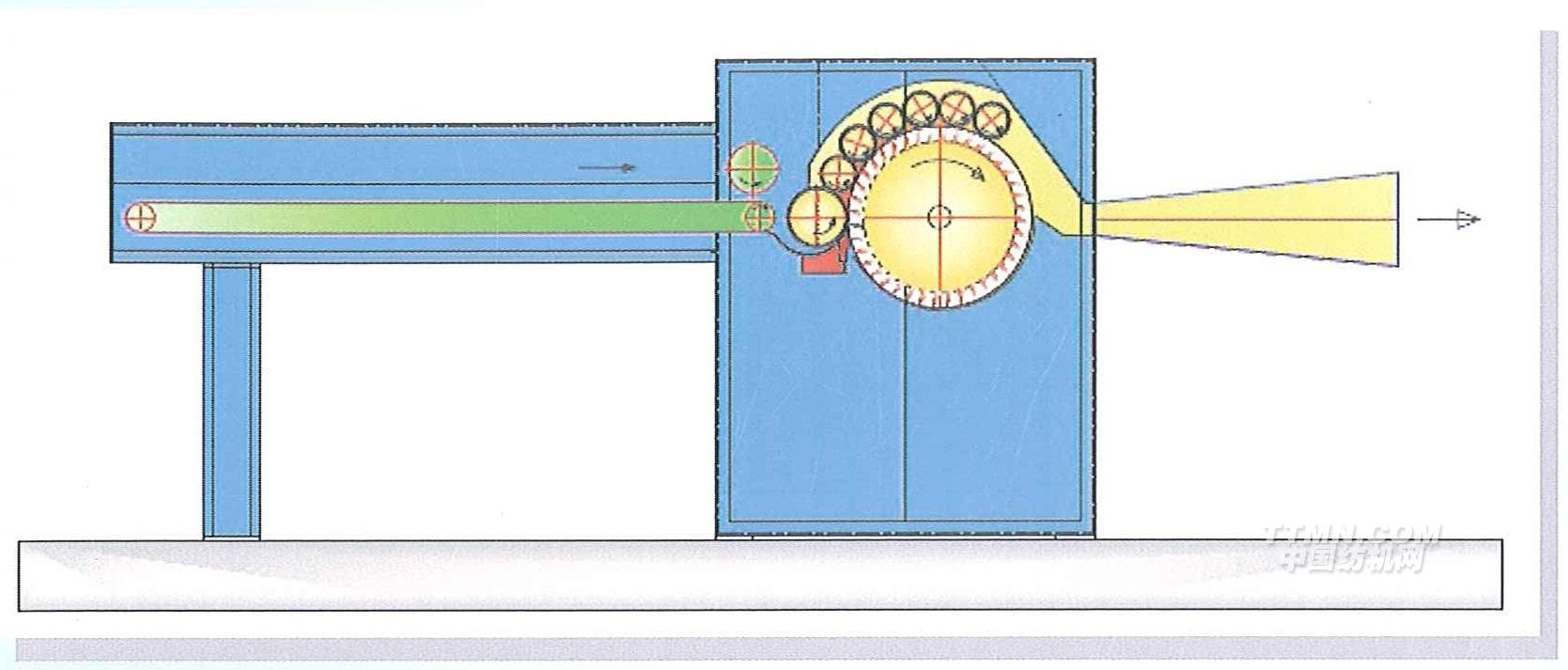

OpenMax works with a new system patented by Ommi, that assure a very high power of tearing and/or opening but with a delicate effect on the fibers. This is possible because the actual tearing /opening is applied in the same direction of the material movement and with an action on the fibers similar to the one of carding. High output, optimal quality of the processed material, versatility of use with adjustments possibilities, very low consumption of energy makes this machine a real innovation in the field!
多功能多用途神奇開松機OpenMax配置奧米公司新的專利系統，保證充分撕裂/開松，但對纖維的損傷很小。此專利系統在原料的運行方向?qū)嵤┧毫?/span>/開松，類似于梳理工序。
OpenMax多功能多用途神奇開松機因產量高、成品質量好、用途廣、耗能低成為這領域的獨創！

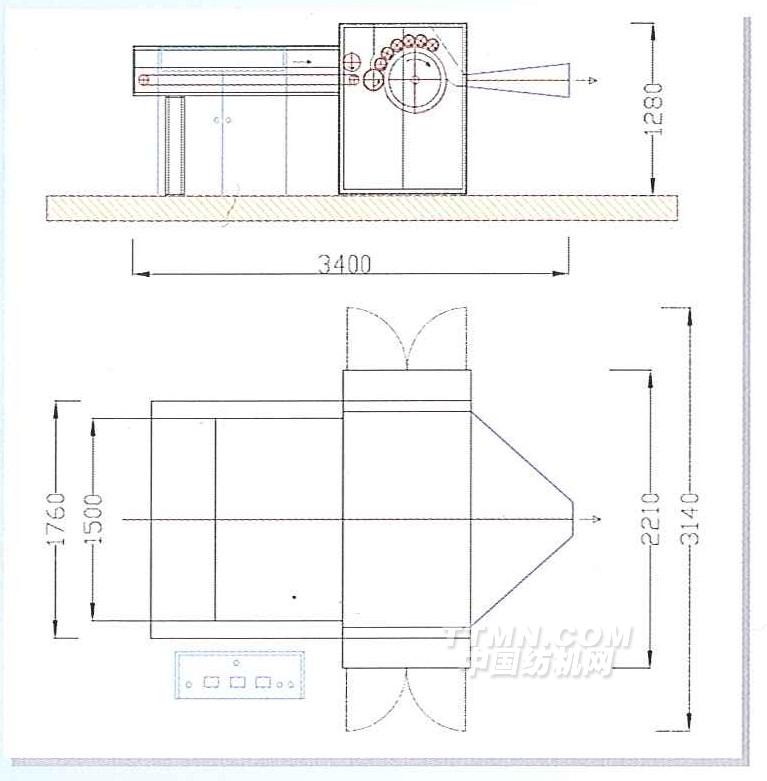

TECHNICAL CHARACTERISICS “APM-7” 技術參數
Worrking Width: 1000-1500mm
工作寬度: 1000-1500mm
Main Drum: dia.520mm
大滾筒直徑: 520mm
Main Drum Clothing: pins or rigid
大滾筒針布: 角釘或金屬針布
Main Drum Drive: variable speed with inverter
大滾筒傳動 ： 變頻調速
Feeding Group: PVC belt with pressing cylinder
喂入裝置： PVC傳送帶+壓輥
Introduction Group: clothed cylinder and cradle
輸入單元： 配置針布的錫林和托盤
Feeding-Introduction Drive: variable speed with inverter
喂入-輸入單元傳動: 變頻調速
Workers Roller: 1+6 with rigid clothing
工作輥： 1+6 配置金屬針布
Workers Drive: variable speed with inverter
工作輥傳動： 變頻調速
Machine Control Panel: centralized with touch screen mounted on the electrical cabinet
設備控制面板： 位于控制柜，配置觸摸屏
Installed Power: 15-20Kw
安裝功率： 15-20Kw
Minimum Air Pressure: 7-8 Bar
最低空氣壓力： 7-8 Bar
Metal Detector: with electric circuit on the introduction isolated cylinder
金屬探測器： 安裝在獨立的輸出錫林上
Anti-full Control: with pressure switch placed on the exit chute
防過滿控制： 位于輸出槽，配置壓力開關
Material Feeding: manual or with automatic feeding units
原料喂入： 人工或配置自動喂入單元
Impurity or Patch Discard: with adjustable interceptor and recuperating vacuum system
雜質去除： 配置有可調的攔截器和真空系統
Accessibility: with hinged covers safety interlocked
輔助裝置： 安全連鎖的鉸鏈防護罩
Productivity: Productivity: Highly productive with best possible quality levels
產量： 高質高產
For Recycling:
適用范圍：
-Non woven such as edge trims or pieces of spun lace – needle punched – thermo bico
無紡布，包括水刺、針刺、熱熔的下腳料
-Fabric such as jeans – cotton knits – polyester fabrics
織物，例如牛仔布、棉針織布、滌綸布
- Sweaters and fabrics of cashmere, wool, acrylic
羊絨、羊毛、腈綸等的毛衫和布

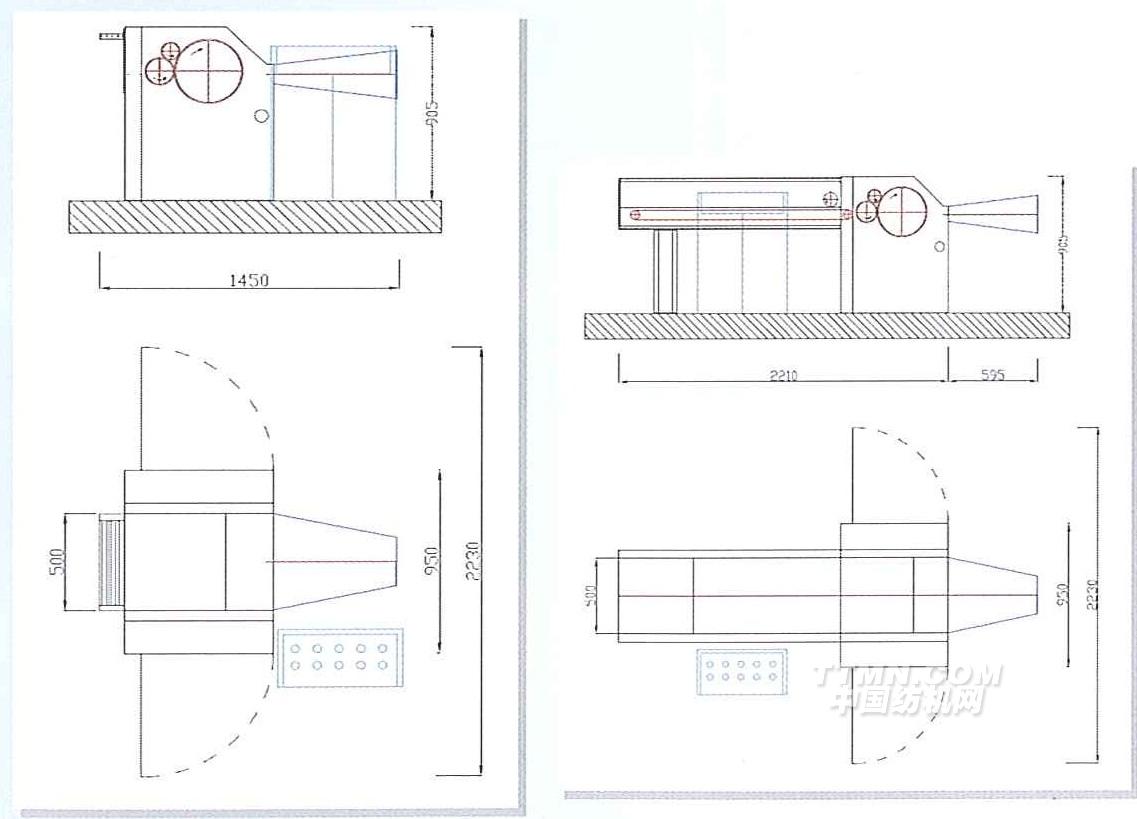

TECHNICAL CHARACTERISICS “APM-2” 技術參數
Worrking Width: 500-800mm
工作寬度: 500-800mm
Main Drum: dia.350mm
大滾筒直徑: 350mm
Main Drum Clothing: pins or rigid
大滾筒針布: 角釘或金屬針布
Main Drum Drive: variable speed with inverter
大滾筒傳動 ： 變頻調速
Feeding Group: PVC belt with pressing cylinder or direct for selvedges
喂入裝置： PVC傳送帶+壓輥 或布邊直接喂入
Introduction Group: clothed cylinder and cradle
輸入單元： 配置針布的錫林和托盤
Feeding-Introduction Drive: variable speed with inverter
喂入-輸入單元傳動: 變頻調速
Workers Roller: 1+1 with rigid clothing
工作輥： 1+1 配置金屬針布
Workers Drive: variable speed with inverter
工作輥傳動： 變頻調速
Machine Control Panel: centralized with controls on the electrical cabinet
設備控制面板： 位于控制柜
Installed Power: 8Kw
安裝功率： 8Kw
Anti-full Control: with pressure switch placed on the exit chute
防過滿控制： 位于輸出槽，配置壓力開關
Material Feeding: manual or with automatic feeding units
原料喂入： 人工或配置自動喂入單元
Impurity or Patch Discard: with adjustable interceptor and recuperating vacuum system
雜質去除： 配置有可調的攔截器和真空系統
Accessibility: with hinged covers safety interlocked
輔助裝置： 安全連鎖的鉸鏈防護罩
Productivity: Productivity: Highly productive with best possible quality levels
產量： 高質高產
For Recycling:
適用范圍：
- Waste sweaters, fabrics, yarns, rovings and slubbing of cashmere, wool, cotton, acrylic
羊絨、羊毛、棉、腈綸等的毛衫、布、紗線、粗紗條
- Non woven products
無紡布產品
