ZBSW-P10（平紋機）
發布時間：2013-10-25

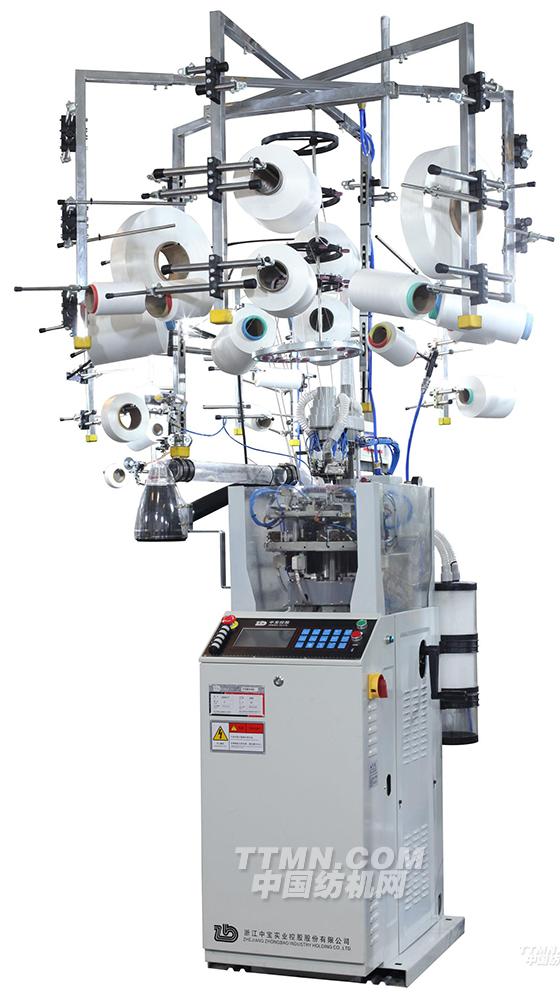

ZBSW-P10（平紋機）Computerized plain-weave Pantyhose knitting machine
本設備可編織平紋，1×1，3×1固定網眼，T襠1×1中間加固等多種組織，廣泛適用于尼龍絲、包芯絲、天鵝絨、錦綸、牛奶絲等原料的絲襪織品，織品主要有對對襪、中統襪、長統襪、連褲襪、九分褲、連身襪等。
Weave:
The computerized plain-weave Pantyhose knitting machine can plain weave, 1×1，3×1 fixed mesh and T crotch 1×1where fixed texture is added in the middle.The machine can widely usenylon yarn, coreyarn, velvet, nylon, milksilkand other raw materials to producestockingfabrics, includingPairs of socks,longstockings, pantyhose, and nine point’s stockings products.
主要功能：
1.四路進紗，每組喂紗裝置配備5至6把梭子，可滿足各種襪品的生產需要；
2.主口梭子采用了分體式設計，大大降低客戶的使用成本且便于維修；
3.線圈組織的針弧大小、襪品的尺寸，均由高精度足功率的步進馬達控制針筒的上下來實現；
4.采用了高靈敏的裸氨輸送器，通過調節輸送器控制裸氨的松緊，便于編織各型美腿襪；
5.采用了環形紗架，配備了光電感應斷紗器，從而大大提高了報警及時性，減少了紗線浪費；
6.密度調節，通過針筒、密度三角、生克三角三個部分，對織物密度進行調節。
7.采用全方位安全保護措施（氣源處理系統、油量報警、過載停車等），最大限度防止機器損壞、保障人員安全；
8.在軸承、電磁閥、同步帶、織針、花鍵類均選用了進口配件同時，采用了科學合理的裝配工藝，從而使得機器穩定性好、噪音低。
Main features:
1.4-way feeders, each yarn feeder device is equipped with 5-6 shuttles, which can meet requirements of all variety of socks;
2. The main shuttle adopts independent design system, which greatly reduce customer's usage cost an easily for maintenance;
3.Stitch density and socks size are finished by cylinder being up and down which controlled from high-precision stepper motor .
4.It adopts one highly sensitive bare spandex carrier, which can adjust tightness of the bare spandex and easily to knit all types of socks;
5. Circular creel with a photoelectric sensor which can greatly improving the alarm on time and reduce yarn waste;
6.Stitch density control,the stitch density addjust to cylinder,stitch cam and sinker cam;
7.Equipped with enough protection measures (air compressor system, auto lubrication alarm, overload stop,etc.) to prevent damage to the machine and keep safety of personnel;
8. Taking advanced and Imported parts for bearings, solenoid valves, synchronous belt, needles, splines and so on. And it has scientific assembly process to keep machine working stable with lownoise.
性能參數：
|
機器型號 |
針筒直徑 |
針數范圍 |
最高轉速 |
適用產品 |
|
ZBSW-P10 |
4英寸 |
240N-400N |
平紋最高轉速：1000RPM |
對對襪、連褲襪 中統襪、長統襪等 |
Performance Parameter：
|
Machine Model |
Cylinder Diameter |
Number of Needles |
Maximum Speed |
Available Production |
|
ZBSW-P10 |
4” |
240N-400N |
Plain weave Max.：1000RPM |
Pairs socks, Pantyhose, long stockings |
標準配置：
1.第1路喂紗裝置配備6把梭子，2、3、4路喂紗裝置配備5把梭子；
2.配備線架的同時，配備了1個裸氨輸送器和12個光電感應斷紗器；
3.帶包邊的圓盤剪刀，圓盤剪刀在任意步段可停止轉動；
4.配備由一個步進馬達控制生克弧大小的生克罩；
5.配備了4個氣動控制的成圈三角，并配備了一套高精度量塊，便于調節成圈三角的高度，保障紋路的一致、平整；
6.配備了可升降的扎口盤，其中4把小剪刀中有2把小剪刀具有氣動控制上下的功能；
7.1、3路配備了8級氣動刀片式選針器。
Standardconfiguration:
1.The 1-wayyarnfeederis equipped with6shuttles, and each 2,3,4 way feederis equipped with5shuttles;
2. It has one creel, one bare spandex carrier and 12photoelectricsensorsoffyarn;
3.The clippers withdiscpackage edge, which can stop rotation at anystep;
4.Sinker cover , which controlled by one stepping motor though adjust sinker size;
5. Equipped with 4pneumatic cycle-triangle, and oneprecisiongauge blocks, which easily toadjustthe height ofcycle-triangleto protect thelinesinthesameformation;
6..The waist belt can rise or fall with 4 scissors , including 2 scissors up and down controlled bypneumatic;
7.The 1,3 way feeders areequipped with 8 classpneumaticneedle selector.
